KRJ-415GYZNL quad cell RJ45 network connector with 100Mbps integrated Ethernet filtering shielding strip light

ติดต่อตอนนี้

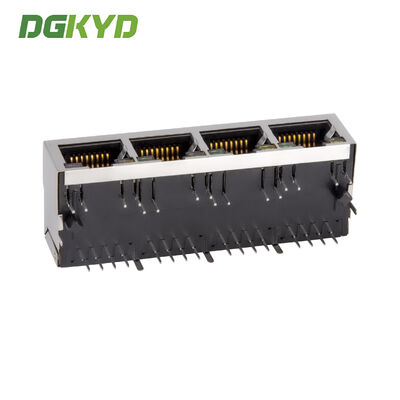

KRJ-415GYZNL quad cell RJ45 network connector with 100Mbps integrated Ethernet filtering shielding strip light

จำนวนสั่งซื้อขั้นต่ำ :	1 ชิ้น	ราคา :	Please contact us to get the latest price.
รายละเอียดการบรรจุ :	ถาดในกล่อง	เวลาการส่งมอบ :	10 วัน
เงื่อนไขการชำระเงิน :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	สามารถในการผลิต :	พีซี 100k/วัน

สถานที่กำเนิด:	ทงกวนของจีน	ชื่อแบรนด์:	DGKYD
ได้รับการรับรอง:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	หมายเลขรุ่น:	KRJ-415GYZNL

ข้อมูลรายละเอียด
ผลงาน:	Cat5/5e	ประเภทพอร์ต:	พอร์ตเชื่อมต่อ 4 พอร์ต
วัสดุที่อยู่อาศัย:	พีบีที แบล็ค	นำ:	เขียว/เหลือง
ขั้วต่อ RJ45 หม้อสูง:	1500Vrms	ขั้วต่อ Rj45 ocl:	350uh นาที
ทิศทางแท็บ:	TAB-ลง	จำนวนคอร์:	8
ชุบทองบนหมุดติดต่อ:	6U	อุณหภูมิในการทำงาน:	-40 ° C ~+85 ° C
อุณหภูมิในการจัดเก็บ:	-40 ° C ~+85 ° C

รายละเอียดสินค้า

KRJ-415GYZNL quad cell RJ45 network connector with 100Mbps integrated Ethernet filtering shielding strip light

Technical Specifications

Part Number	KRJ-415GYZNL
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-DOWN
Filter	With Filter
LED Option	With LED
LED Color	Green/Yellow
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	1X4 Ports
Number of Positions	8
Jack Configuration	1X4
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

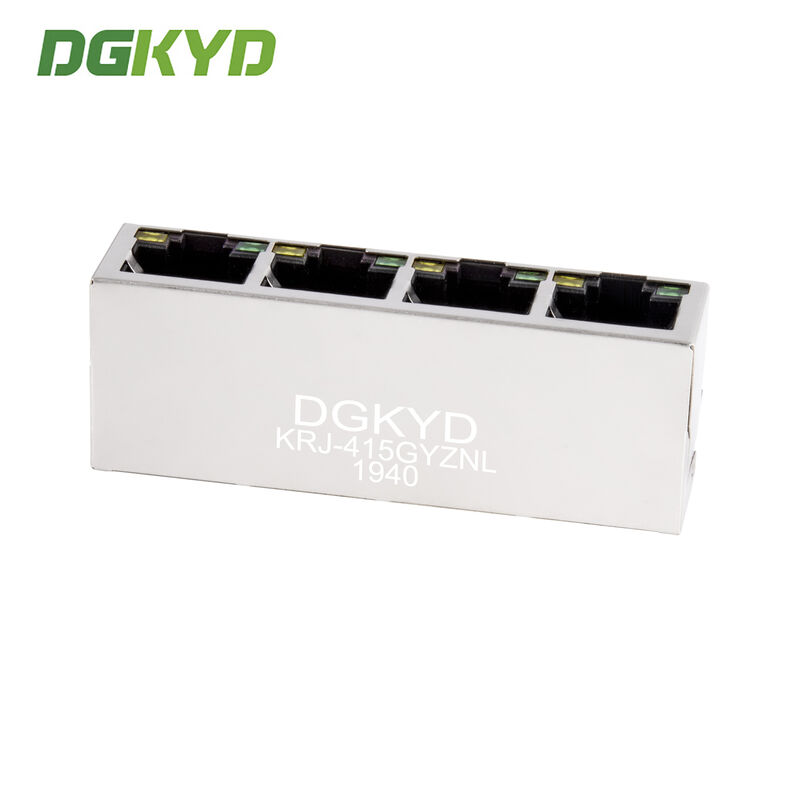

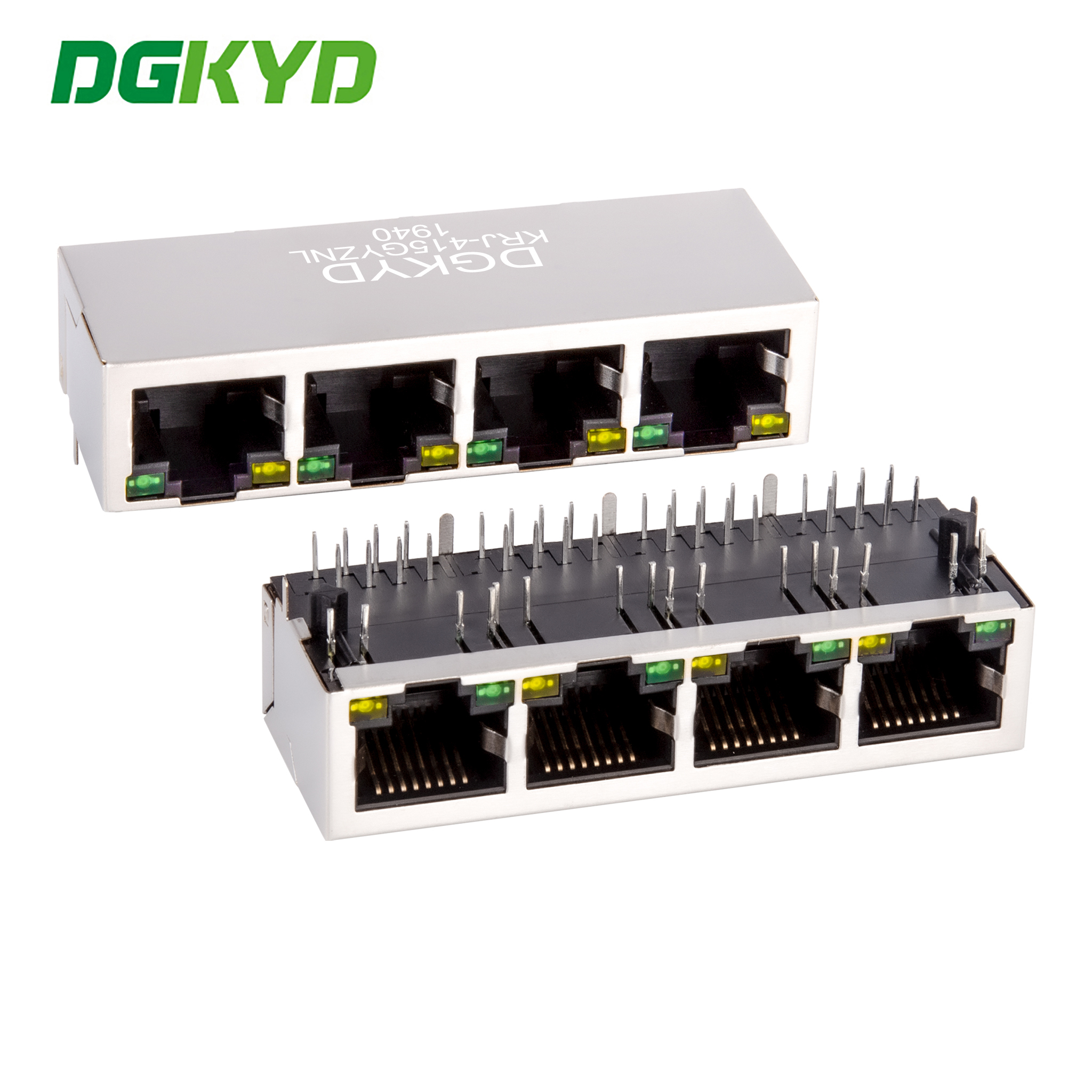

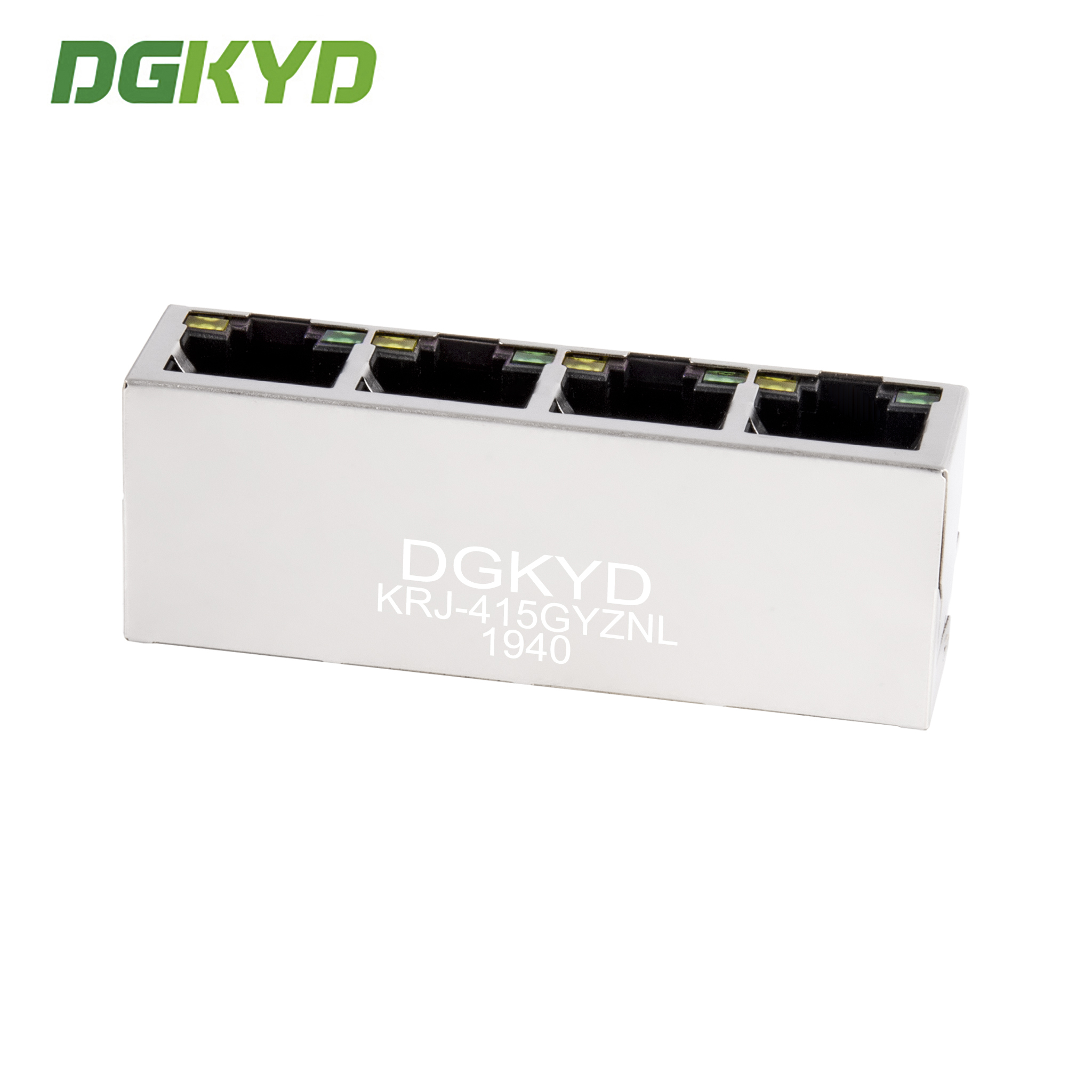

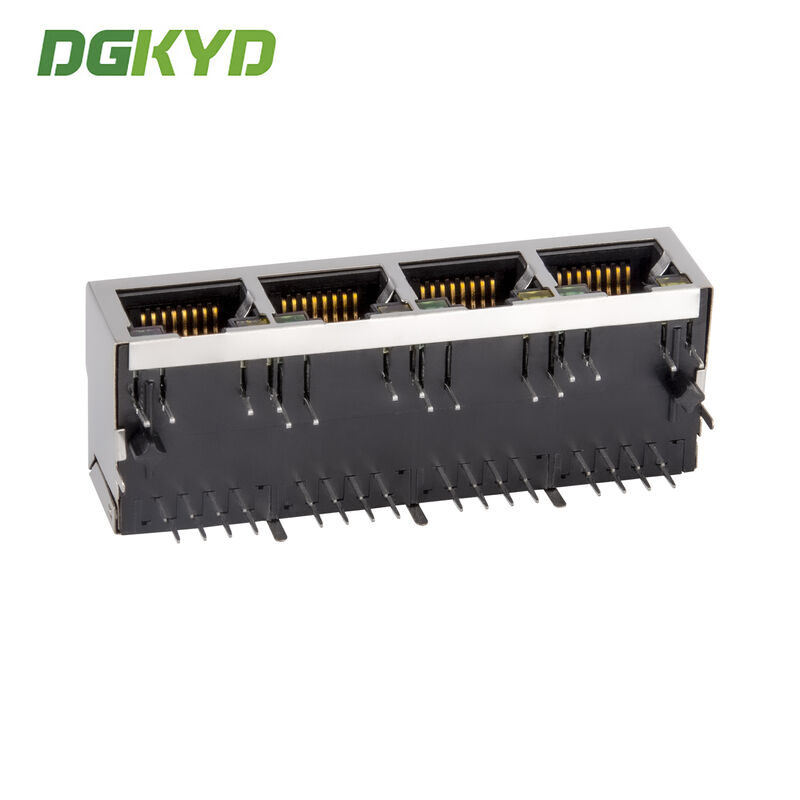

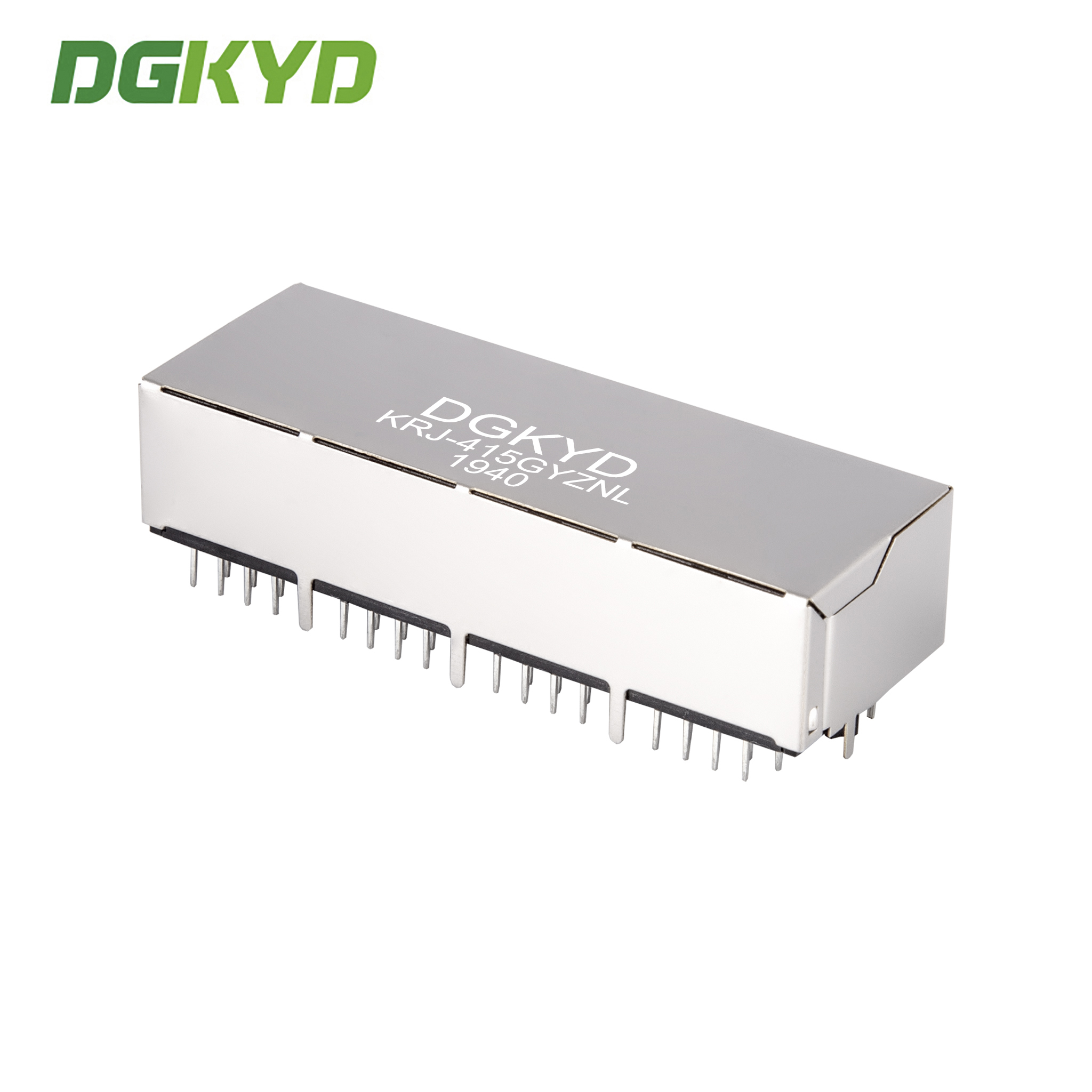

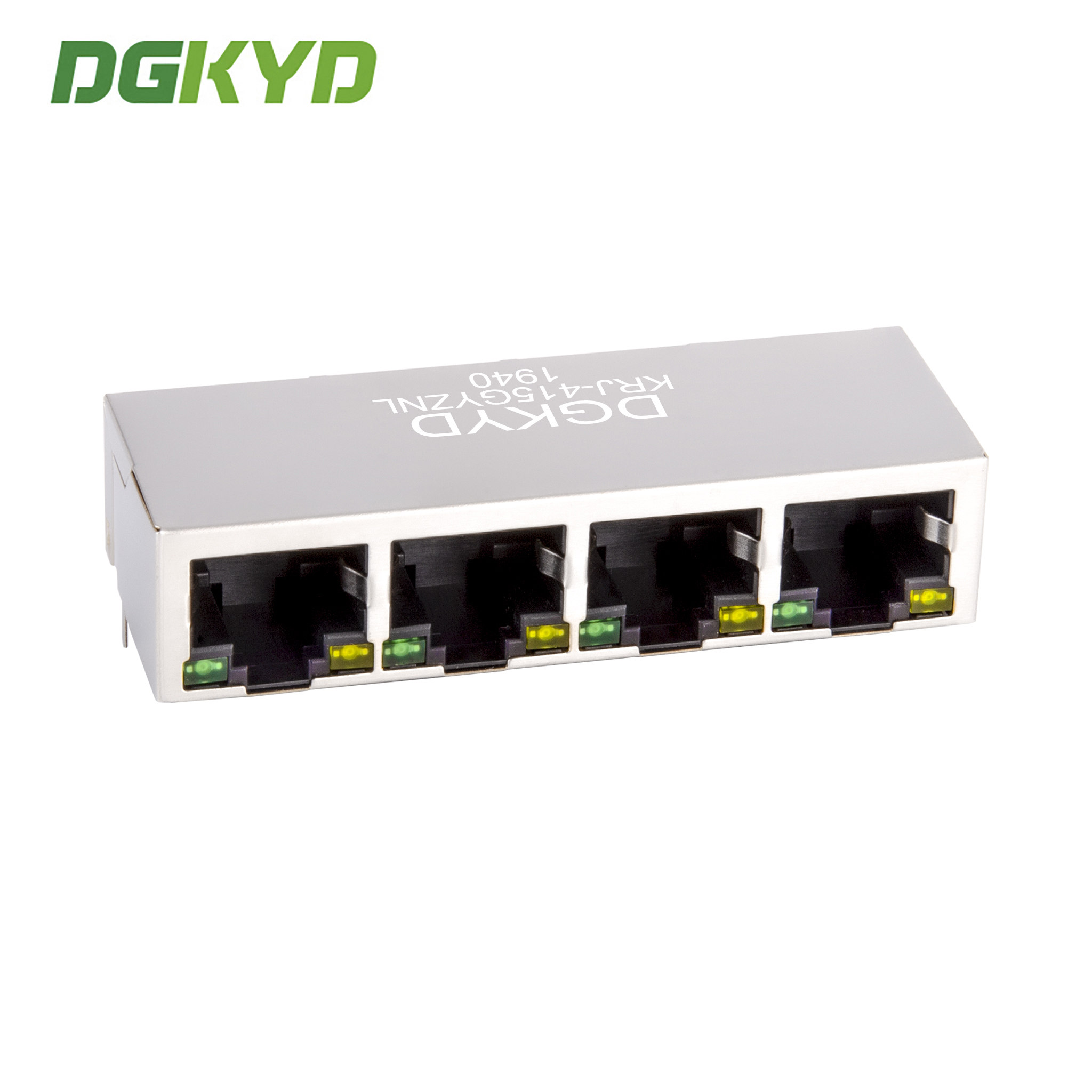

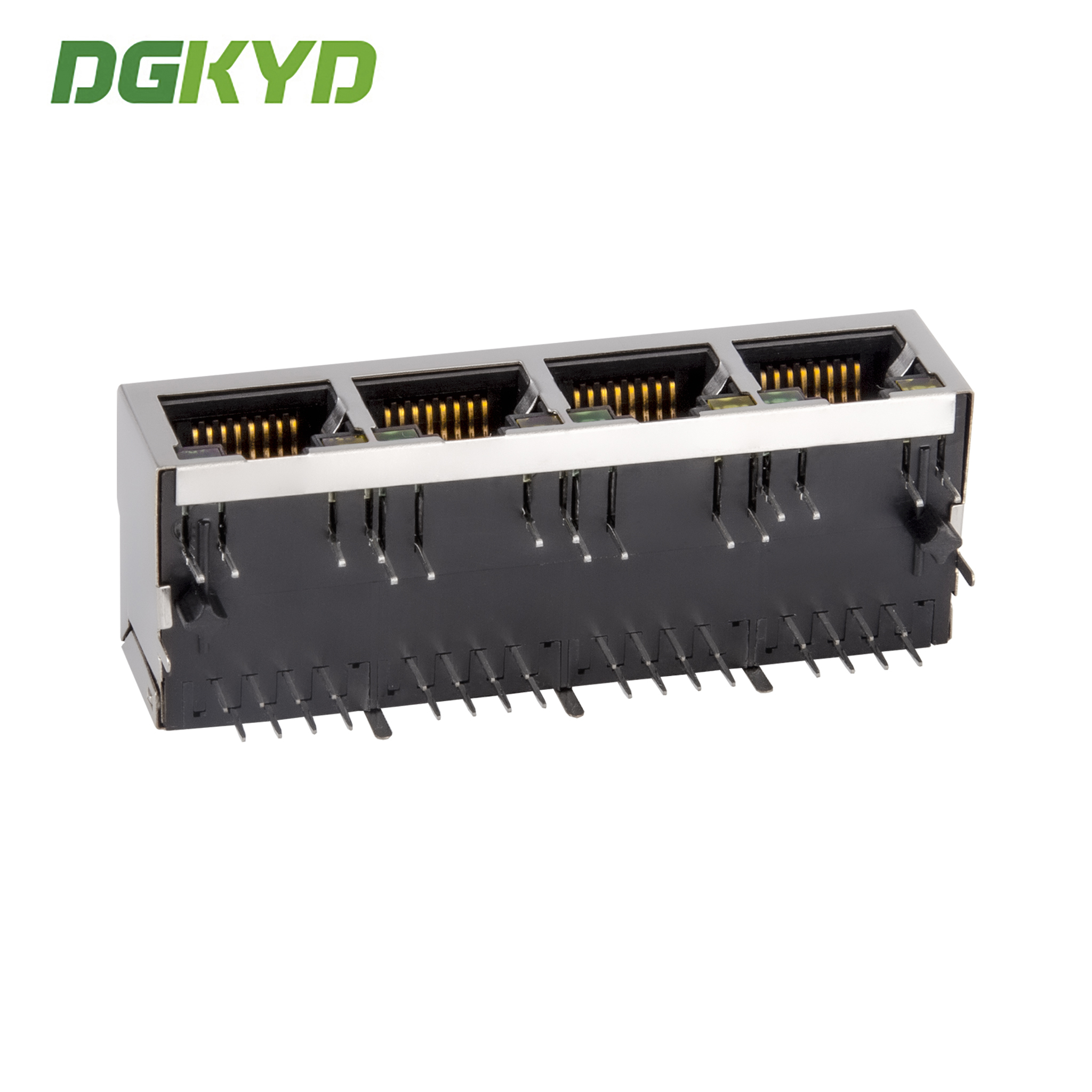

Product Images

Manufacturer Information

Company Profile

Factory Show

Factory Show

Factory Show

DGKYD Product

DGKYD Product

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40â„ƒ to 85â„ƒ
Storage temperature: -40â„ƒ to 85â„ƒ
Lead free soldering: wave soldering height up to 265â„ƒ
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSLï¼ADSL and so on.
