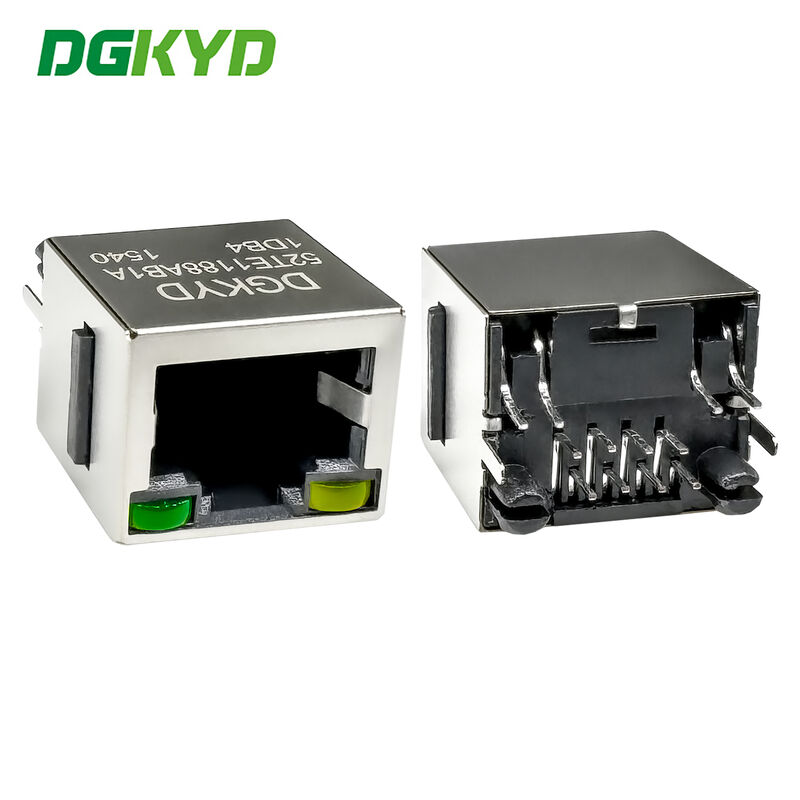

RJ45 vertical network interface direct insertion with light and shielding connector DGKYD52TE1188AB1A1DB4

จำนวนสั่งซื้อขั้นต่ำ :	1 ชิ้น	ราคา :	Please contact us to get the latest price.
รายละเอียดการบรรจุ :	ถาดในกล่อง	เวลาการส่งมอบ :	10 วัน
เงื่อนไขการชำระเงิน :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	สามารถในการผลิต :	พีซี 100k/วัน

สถานที่กำเนิด:	ทงกวนของจีน	ชื่อแบรนด์:	DGKYD
ได้รับการรับรอง:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	หมายเลขรุ่น:	DGKYD52TE1188AB1A1DB4

ข้อมูลรายละเอียด
หมวดหมู่:	แจ็คโมดูลาร์	ประเภทส่วนประกอบ:	Jack PCB
พิมพ์:	อาร์เจ45	เกี่ยวกับแม่เหล็ก:	ไม่มี
หมวดหมู่ประสิทธิภาพ:	แมว 3 5	ประเภทการแทรก:	รายการด้านข้าง
สไตล์เมาท์:	จุ่ม	OEM/ODM:	ใช่
จำนวนตำแหน่ง/ผู้ติดต่อ:	8p8c (RJ45, อีเธอร์เน็ต)	ชุบทองบนหมุดติดต่อ:	6U
อุณหภูมิในการจัดเก็บ:	-40 ° C ~+85 ° C	อุณหภูมิในการทำงาน:	-40 ° C ~+85 ° C
เน้น:	RJ45 shielded vertical connector , 52 series network interface connector , direct insertion RJ45 with light

รายละเอียดสินค้า

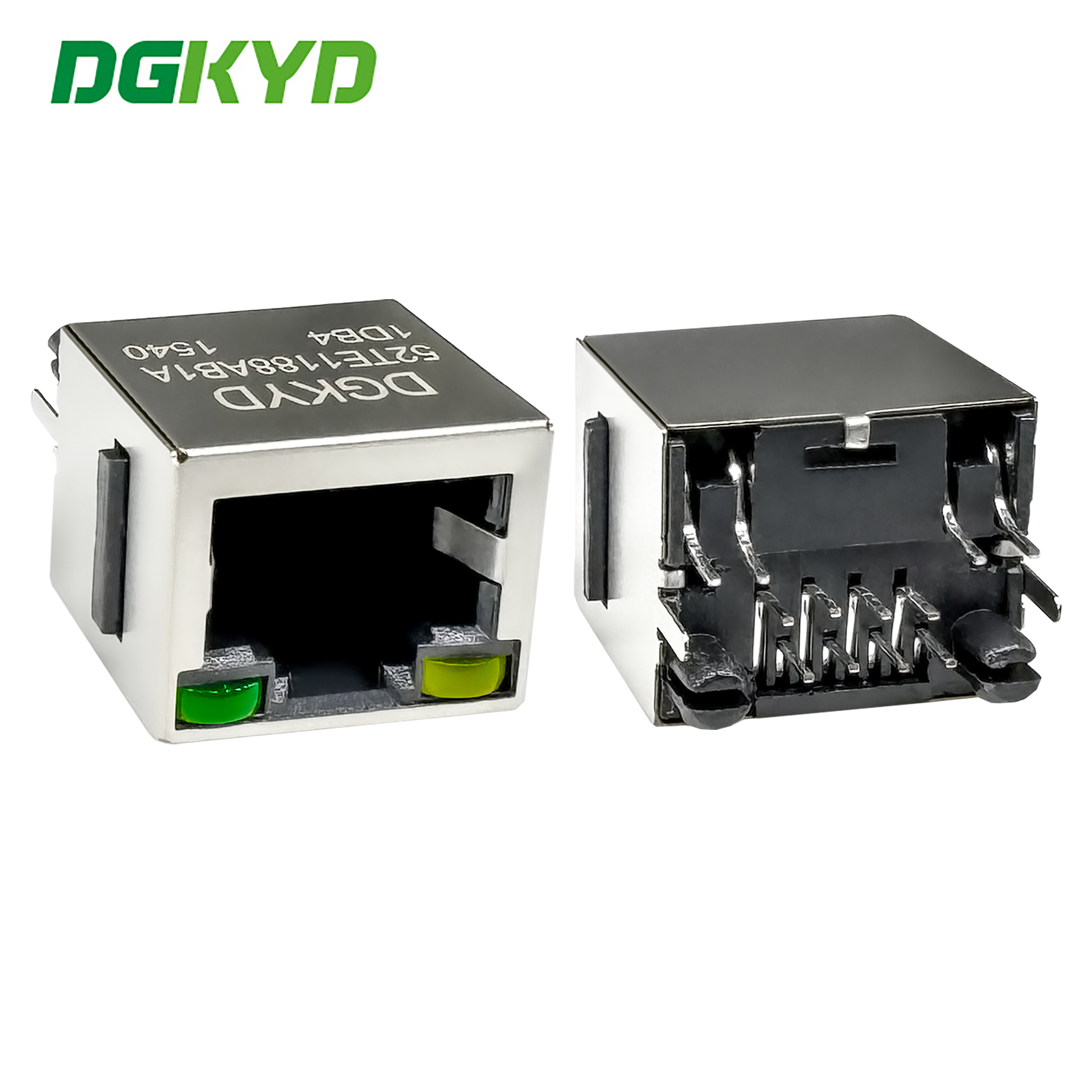

RJ45 Vertical Network Interface Direct Insertion with Light and Shielding Connector DGKYD52TE1188AB1A1DB4

RJ45 vertical network interface direct insertion with light and shielding connector DGKYD52TE1188AB1A1DB4

Product Overview

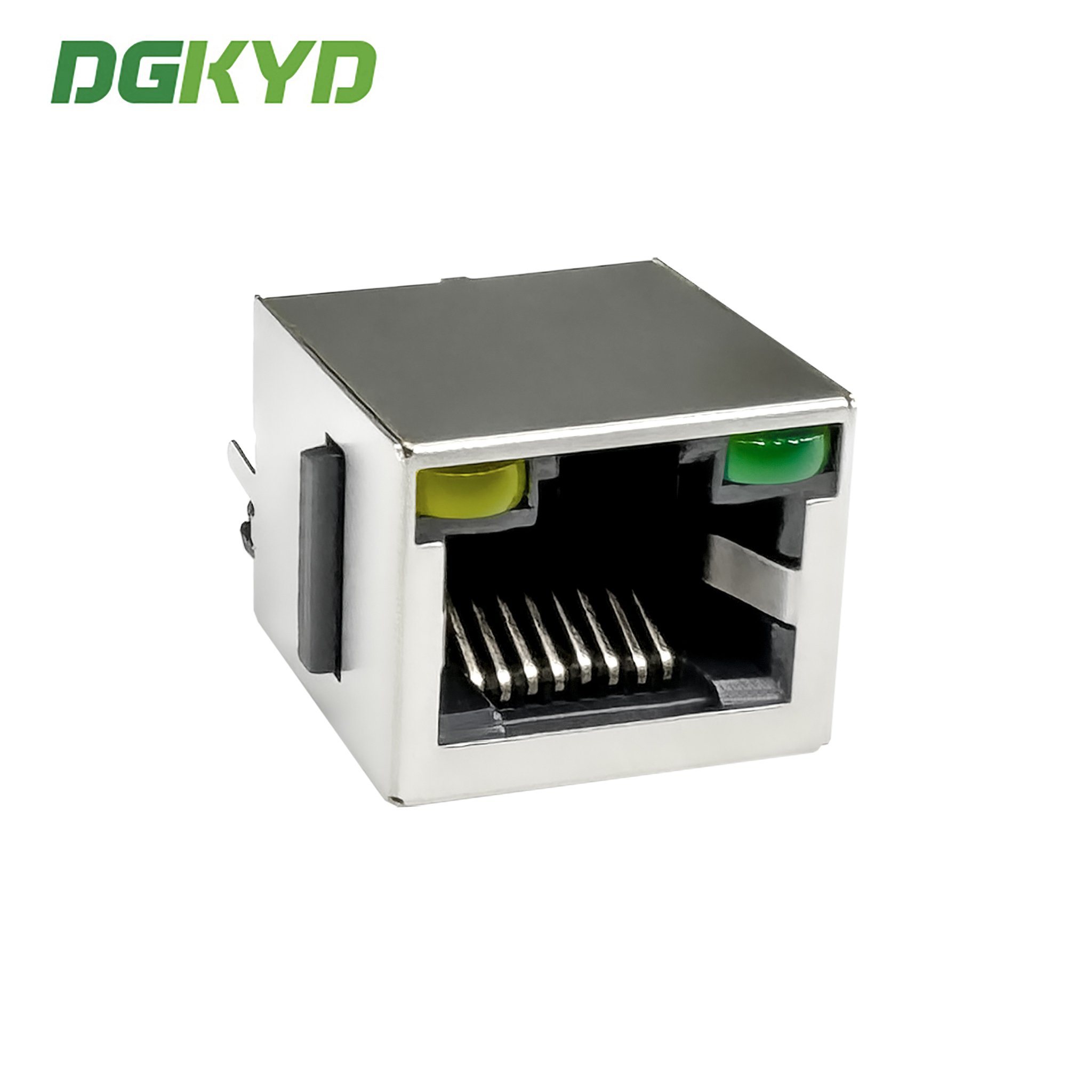

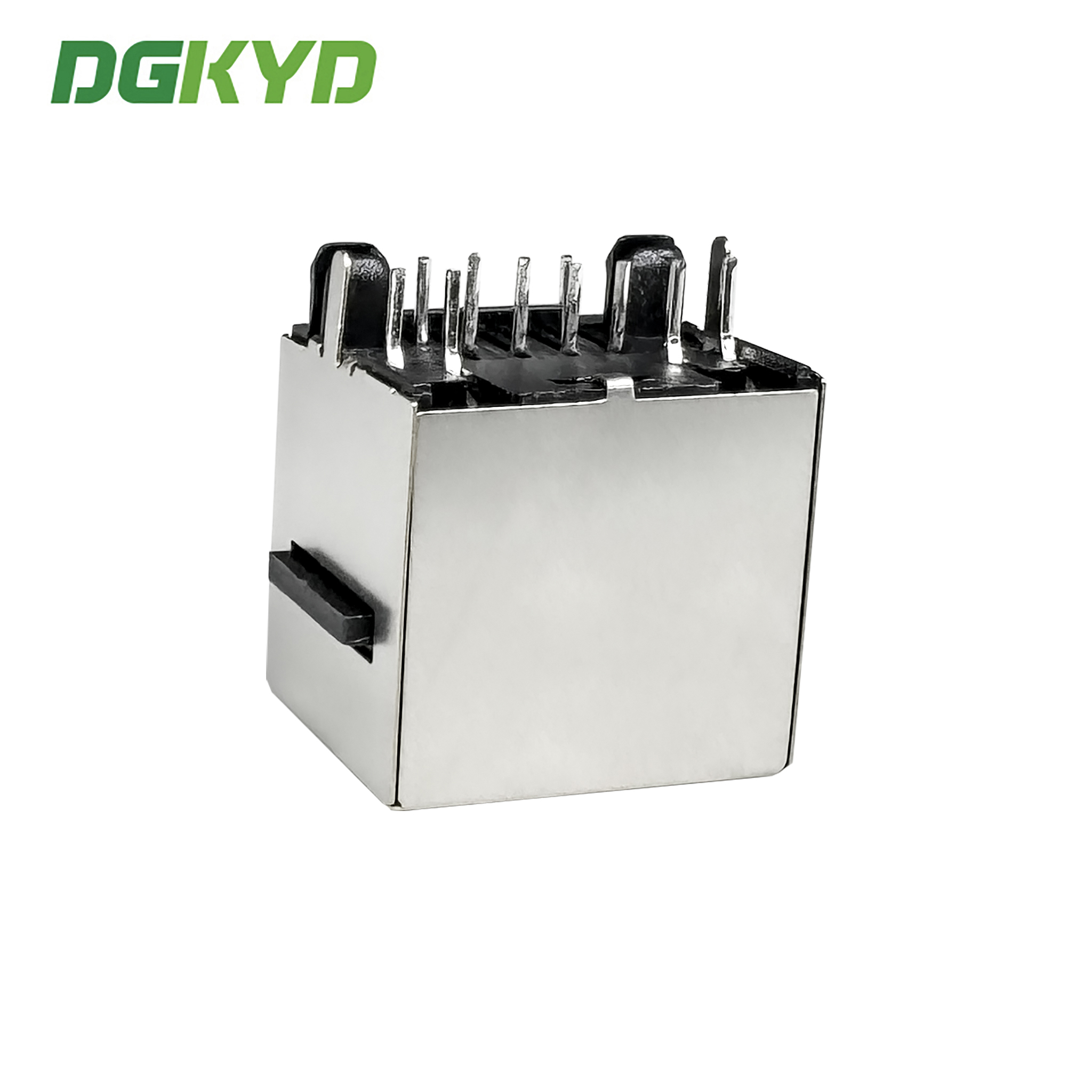

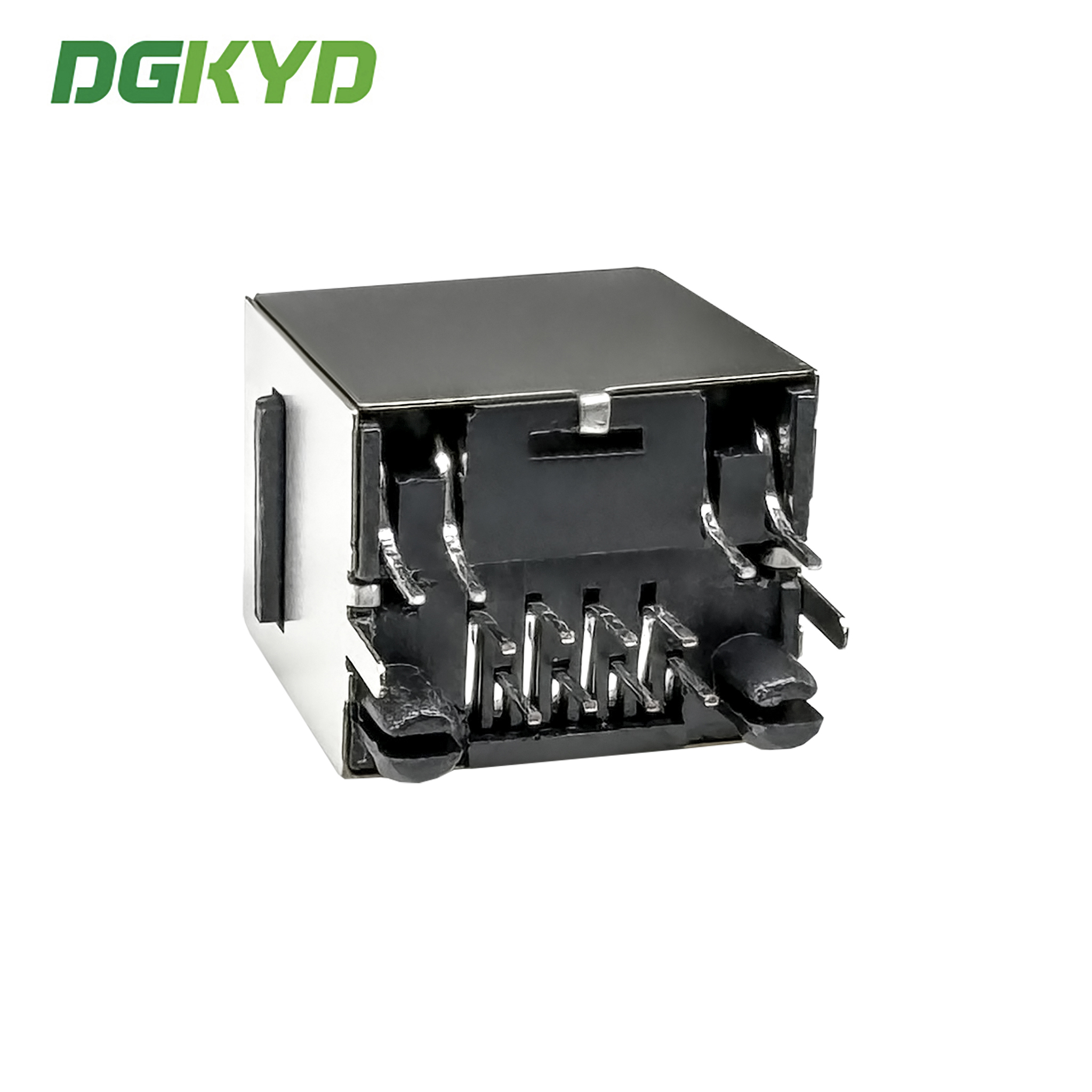

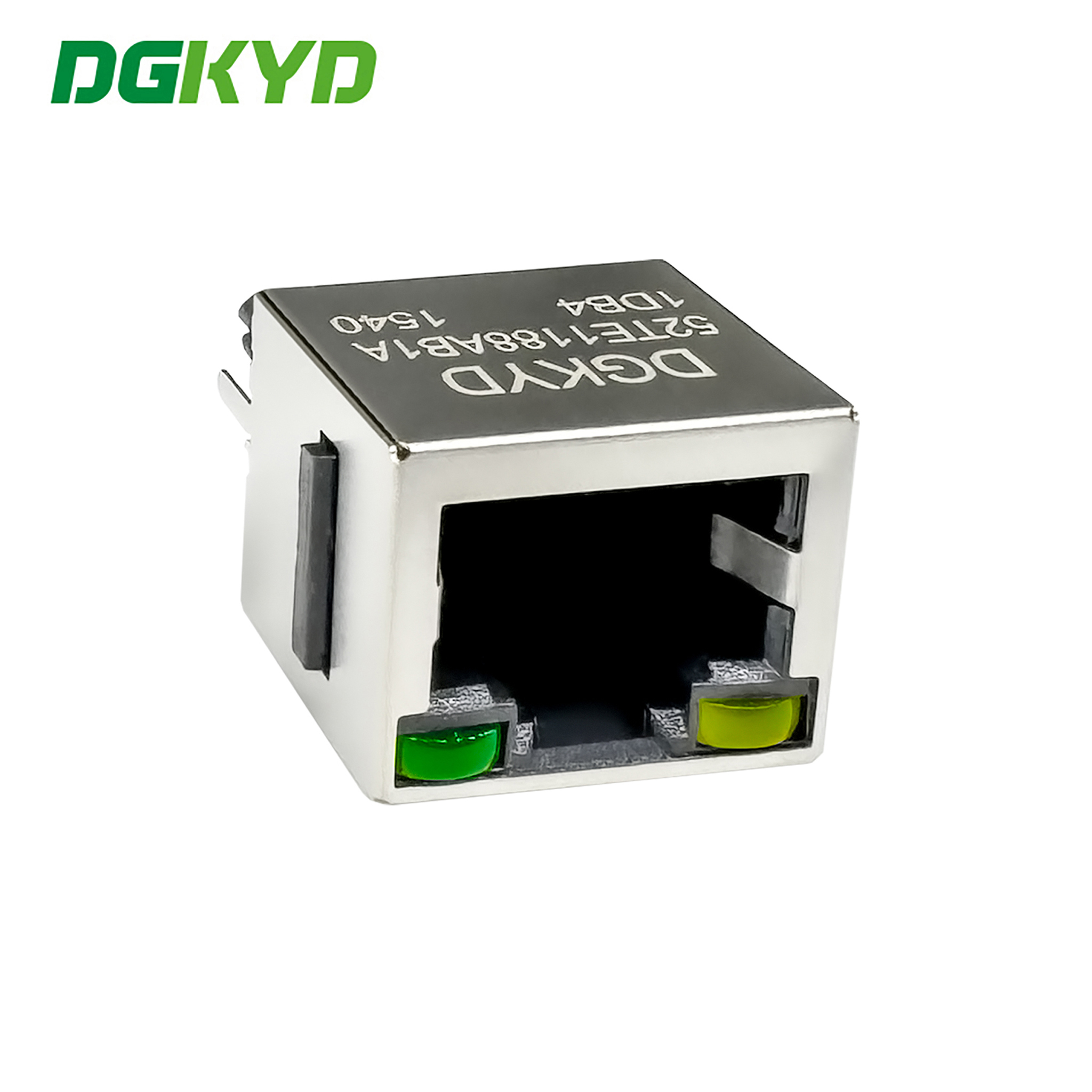

RJ45 vertical network interface direct insertion with light and shielding connector DGKYD52TE1188AB1A1DB4

Technical Specifications

Part Number	DGKYD52TE1188AB1A1DB4
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	With LED
LED Color	Yellow/Green
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Company Profile

Factory Show

Factory Show

Factory Show

DGKYD Product

DGKYD Product

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.
Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
