RJ45 all plastic Ethernet port connector black 8P8C without filter DGKYD52T1188IWA1DY1
ชื่อผู้ติดต่อ : Nicole Zhuo
หมายเลขโทรศัพท์ : +86 18925835585
WhatsApp : +8613538542087
| จำนวนสั่งซื้อขั้นต่ำ : | 1 ชิ้น | ราคา : | Please contact us to get the latest price. |
|---|---|---|---|
| รายละเอียดการบรรจุ : | ถาดในกล่อง | เวลาการส่งมอบ : | 10 วัน |
| เงื่อนไขการชำระเงิน : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | สามารถในการผลิต : | 100,000 ชิ้น/วัน |
| สถานที่กำเนิด: | ตงกวนของจีน | ชื่อแบรนด์: | DGKYD |
|---|---|---|---|
| ได้รับการรับรอง: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | หมายเลขรุ่น: | DGKYD56221111HWA1DY1 |
|
ข้อมูลรายละเอียด |
|||
| ลักษณะ: | ประสิทธิภาพสูง | RJ45 เหมาะสม: | สำหรับสายอีเทอร์เน็ต CAT5&6 หรือ UTP |
|---|---|---|---|
| การใช้งาน: | lan, บริดจ์, พีซี, เราเตอร์, เครือข่ายฮับ usb rj45 และอุปกรณ์อีเธอร์เน็ตทั้งหมด | ชื่อสินค้า: | ขั้วต่อ RJ45 |
| จำนวนตำแหน่ง: | 10 พิน | ประเภทแจ็ค: | อาร์เจ45 |
| อุณหภูมิในการทำงาน: | -40°C~+85°C | อุณหภูมิในการจัดเก็บ: | -40°C~+85°C |
| ตัวเลือก LED: | ไม่ | หม้อแปลง: | ไม่มีหม้อแปลง |
| เน้น: | RJ45 Ethernet Port Connector,10P10C RJ45 interface socket,RJ45 Interface With Shielded |
||
รายละเอียดสินค้า

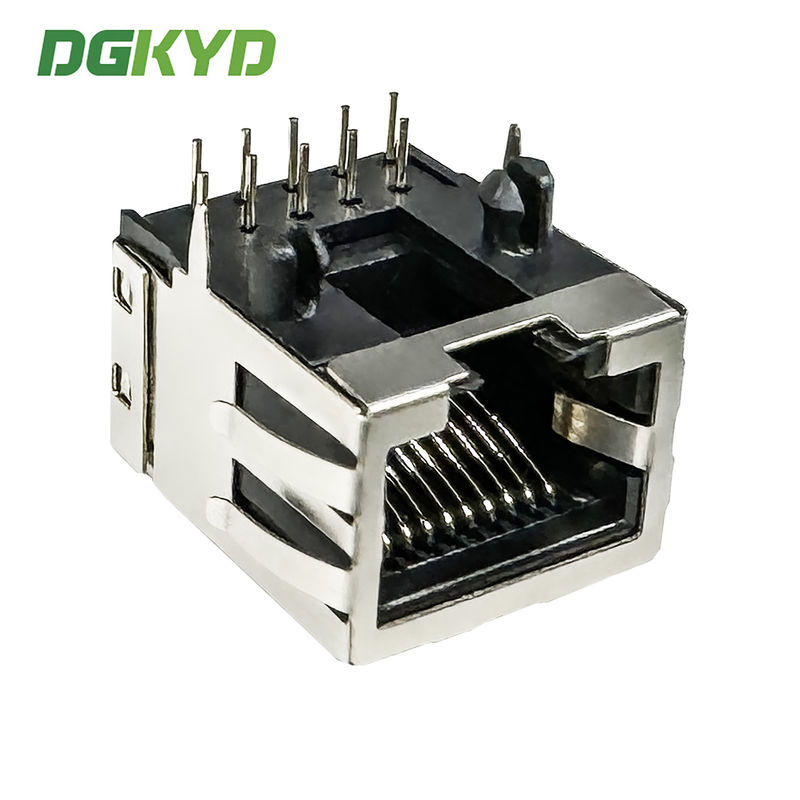

RJ45 interface socket 10P10C with shielded Ethernet port connector DGKYD56221111HWA1DY1
Product Specification Document
DGKYD56221111HWA1DY1.pdf
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: - 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
Parameters
| Part Number | DGKYD56221111HWA1DY1 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-DOWN |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/ 1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 10 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Competitive Advantage:
Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
customer firstly,100% test, 0 defect, short lead time are our best advantages.
► Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
