ความหนา 0.25 มม. 30U SFP Connector RJ45 ทนต่ออุณหภูมิสูง
ชื่อผู้ติดต่อ : Nicole Zhuo
หมายเลขโทรศัพท์ : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiation | ราคา : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | 3000Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| สถานที่กำเนิด: | ตงกวนของจีน | ชื่อแบรนด์: | DGKYD |
|---|---|---|---|
| ได้รับการรับรอง: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYDSFP2N3B23004B022 |
|
ข้อมูลรายละเอียด |
|||
| Cage: | Nickelsilver | Plastic shell: | High temperature LCP |
|---|---|---|---|
| Light pipe: | Polycarbonate | Spring: | Stainless steel |
| Contact: | phosphor bronze | Contact plating: | The minimum plating for the mating area is 15U ", |
| Temperature range: | -40 ℃ to+85 ℃. | Product name: | SFP Connector |
| แสงสูง: | SFP2x2 Fiber Connector,High-temperature LCP Fiber Cage,DGKYDSFP2N3B23004B022 Fiber Cage |
||
รายละเอียดสินค้า

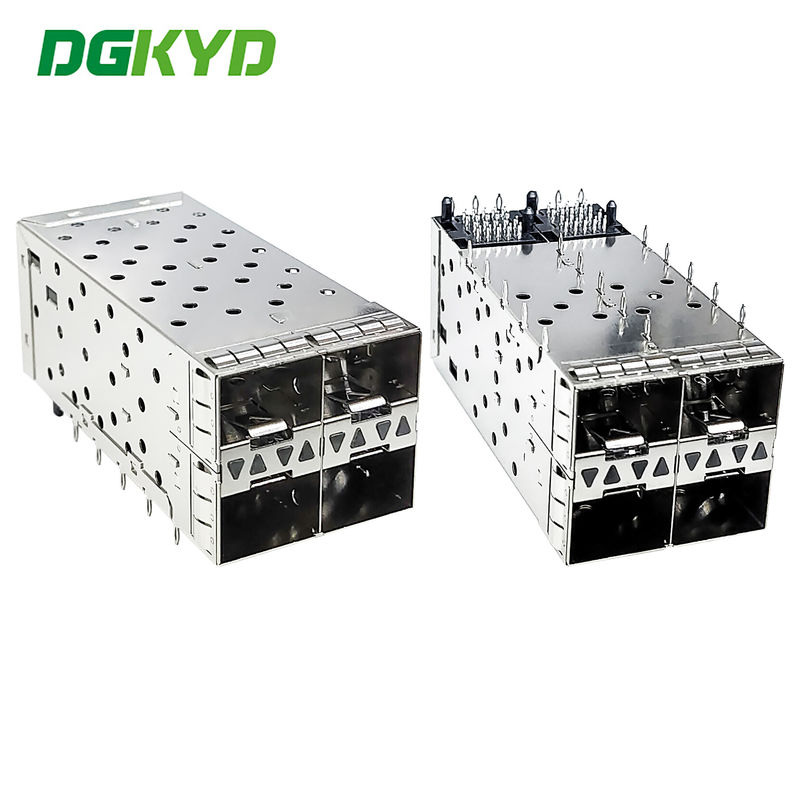

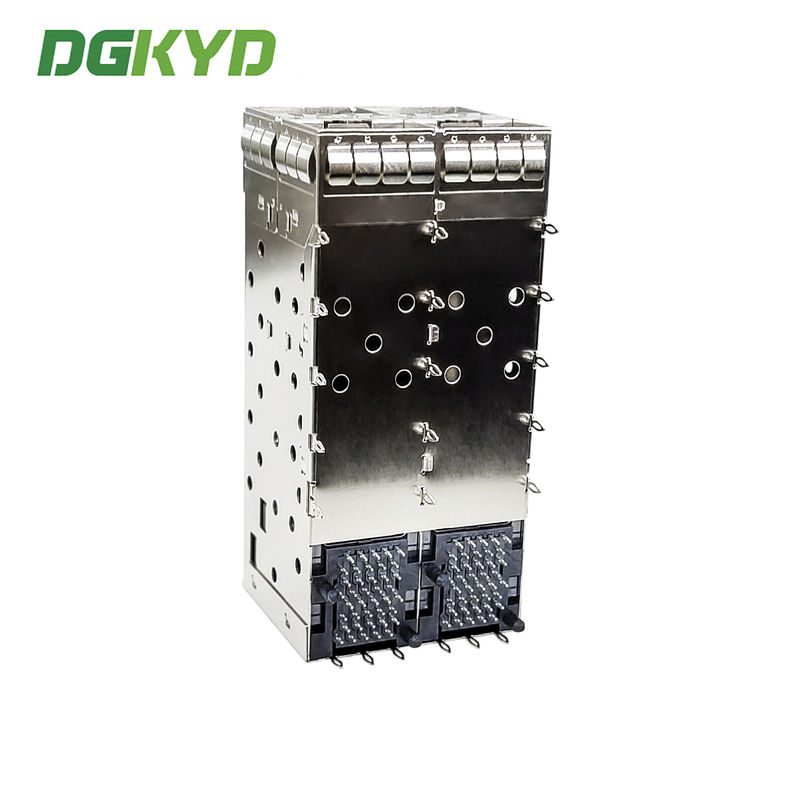

SFP shell SFP2x2 fiber connector, high-temperature LCP fiber cage DGKYDSFP2N3B23004B022
Product Specification Document
They are widely used in PC card / Notebook applications, wireles, etc.
Lead free soldering: wave soldering height up to 265 ℃
Professional connector manufacturer, a variety of styles to choose from, we are factory direct sales, not only quality assurance but also affordable.
Our strengths:
We can provide free samples for you to test, and then purchase if appropriate.
If the product is not what you want, please contact us directly and provide the product specifications you need.
Large-scale production workshop, fast delivery, immediate delivery from the spot, no need to worry about delivery.
We focus on good quality,By the adhere to the principle of professionalization, integrity and efficiency. Sincerely hope to find the work partner to achieve our win-win relationships in the long run.We will treat every customer with heart.Thank you!
| Connector type | SFP 2X2 |
| Number of interfaces | Multi Port |
| Whether to bring EMI shielding shell | Yes. |
| Working environment | 0-85 degree Celsius or -40-85 degree Celsius. |
| Storage environment | -40-85 degree Celsius |
| Applicable welding process | Wave-soldering(Normal) or Reflowsolding(Alternative). |
| The product complies with the standard | Meets IEEE 802.3 specification. |
| RoHS compliance | Yes |
| REACH compliance | Yes |
| Quality Assurance | Electrical performance 200% test passed. |
| Packing specification | Single weight (g ): 4.05; Quantity: 50pcs/Tray; 1300pcs/Carton; G. W. (kg): 9.05 |
| Other technical specifications consultation | Email to gc@dgkyd.com or kyd@dgkyd.com. |
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
Performance parameters:
1. Applied to Ethernet, coil ratio: 1CT: 1CT
2. Meet IEEE 802.3 & ANSI X 3.263 standard
3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard
5. Withstand voltage: 2250VDC 1mA max, 60s
6.Impedance: 100 ohms
7. RJ45 interface meets FCC 68.5 standard
8. DC resistance: 1.5 Ω
