180 Degree Vertical Socket RJ45 Network Port Connector 8P8C Interface DGKYD52241188AC2A1DB4

Name: 180 Degree Vertical Socket RJ45 Network Port Connector 8P8C Interface DGKYD52241188AC2A1DB4
Brand: DGKYD
SKU: DGKYD52241188AC2A1DB4
Rating: 4.8 (145 reviews)

Minimum Order Quantity :	1 piece	ราคา :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	ชื่อแบรนด์:	DGKYD
ได้รับการรับรอง:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD52241188AC2A1DB4

ข้อมูลรายละเอียด
Application:	PCB	Gender:	Female
Housing Material:	PBT BLACK	Contact Mating Area Plating:	GOLD 6u'' / 15u"/ 30u"/ 50u" for optional
Latch:	UP	LED Option:	Green/Yellow
Number of Ports:	single Port	Number of Contacts:	8PIN
PCB Mount Angle:	SIDE ENTRY
แสงสูง:	8P8C interface RJ45 network connector , 180 degree RJ45 network connector , RJ45 network port connector

รายละเอียดสินค้า

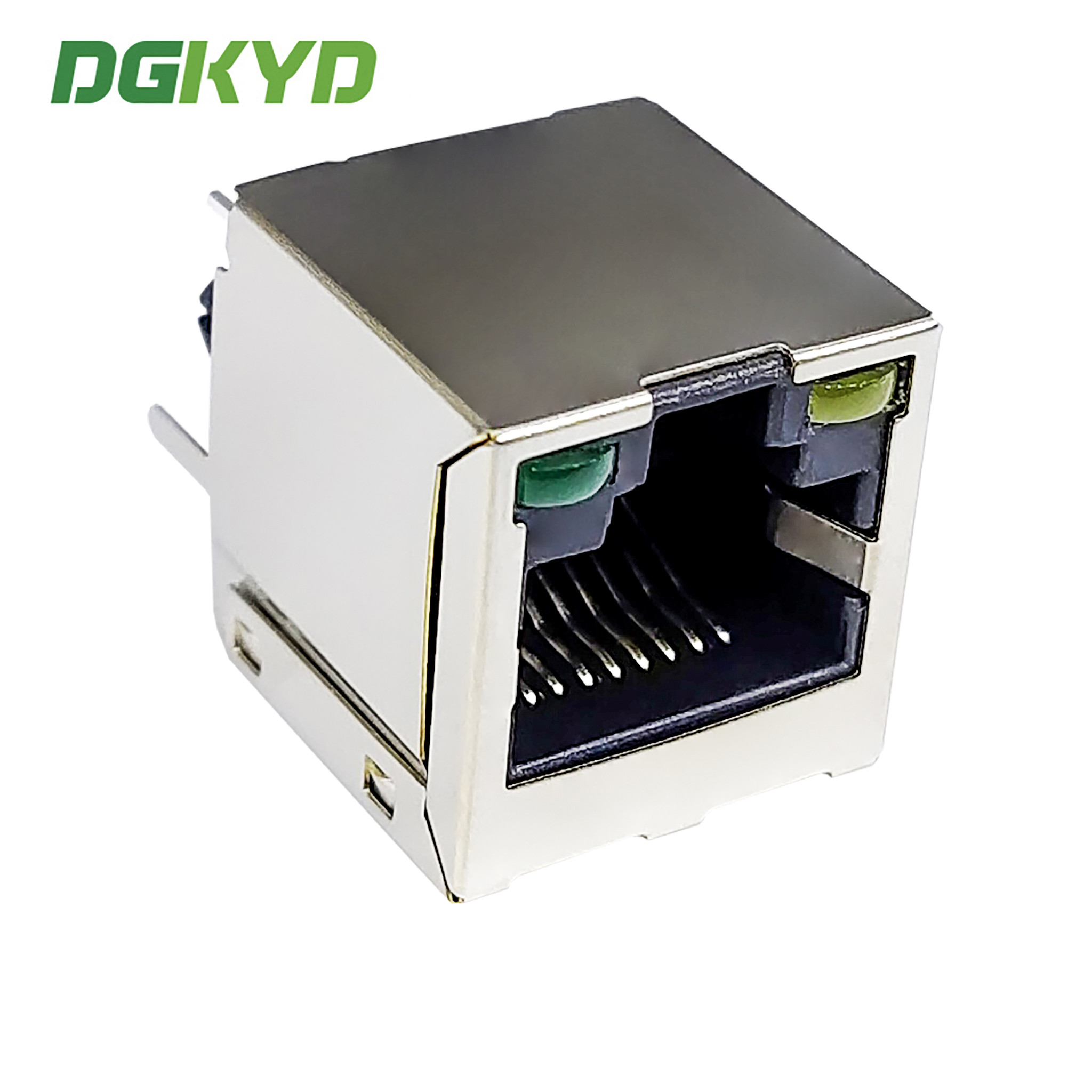

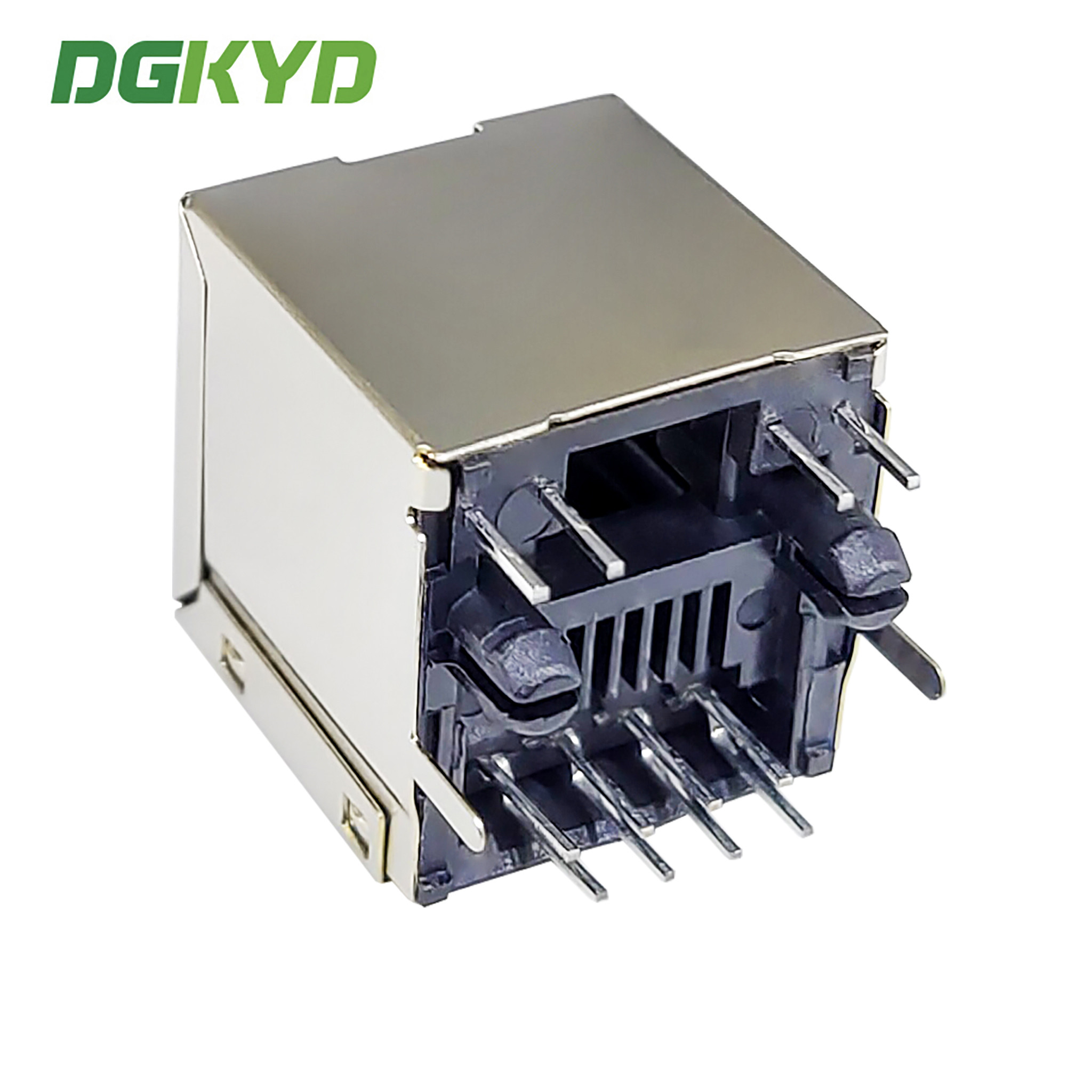

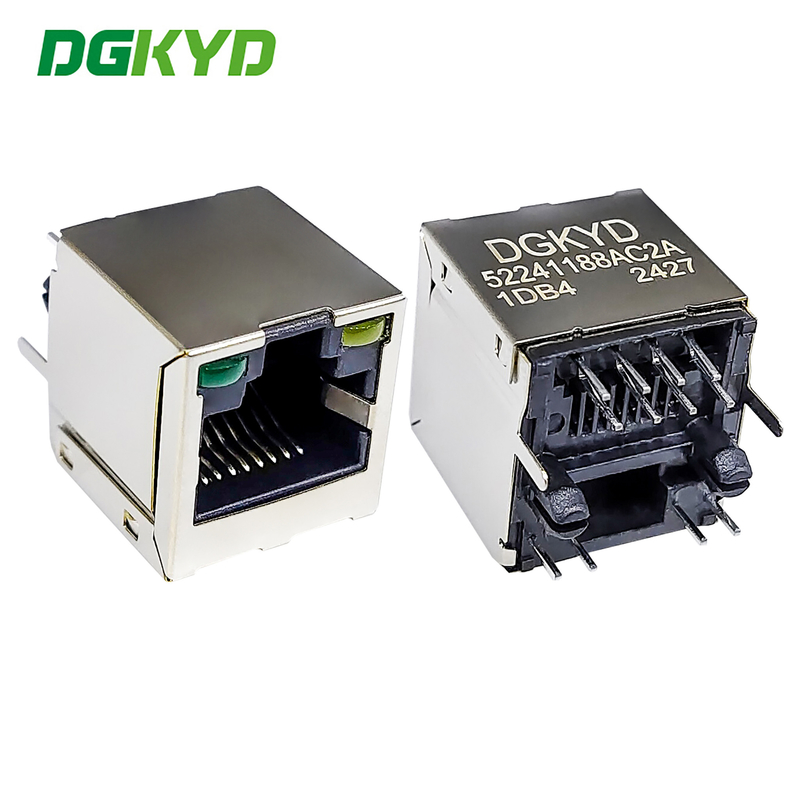

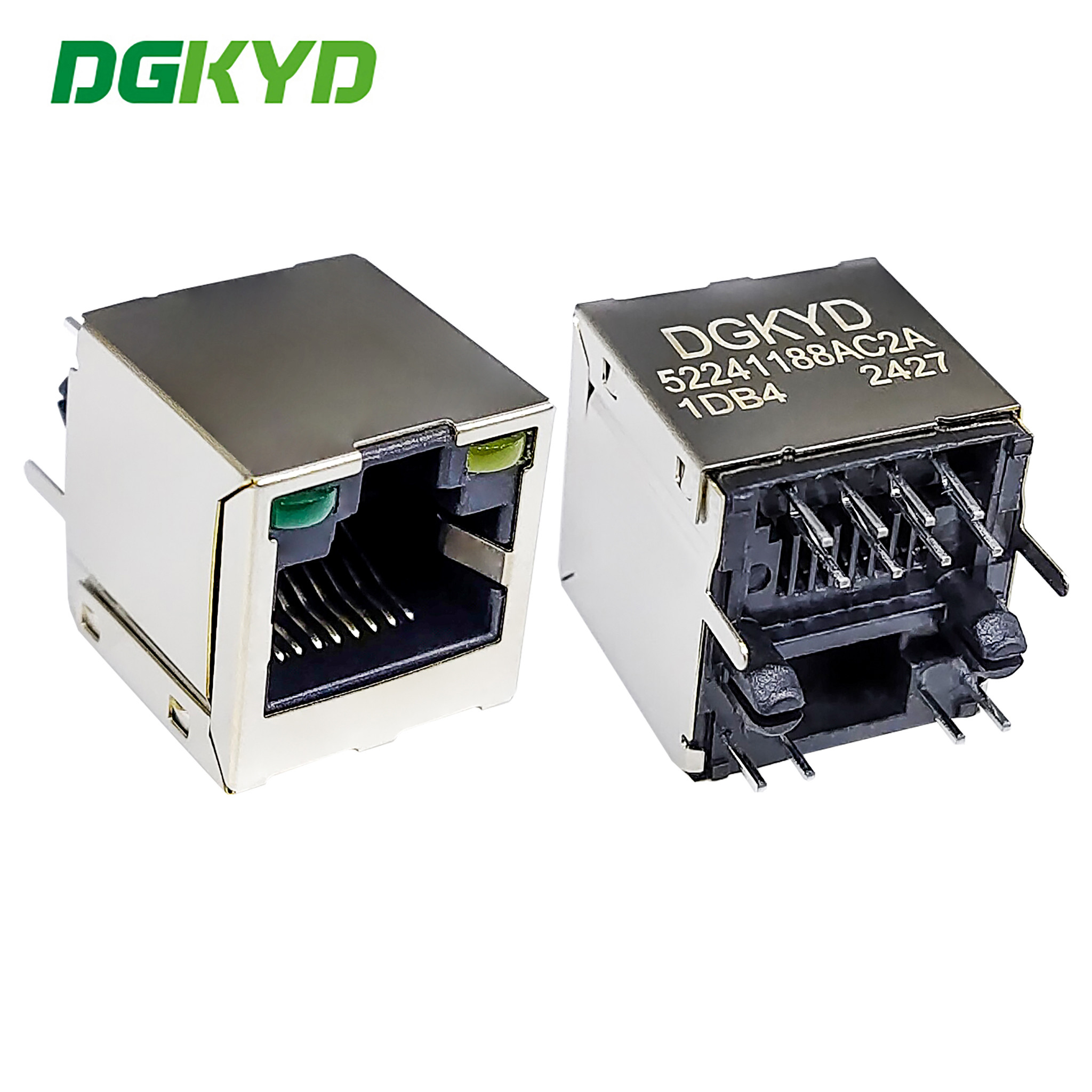

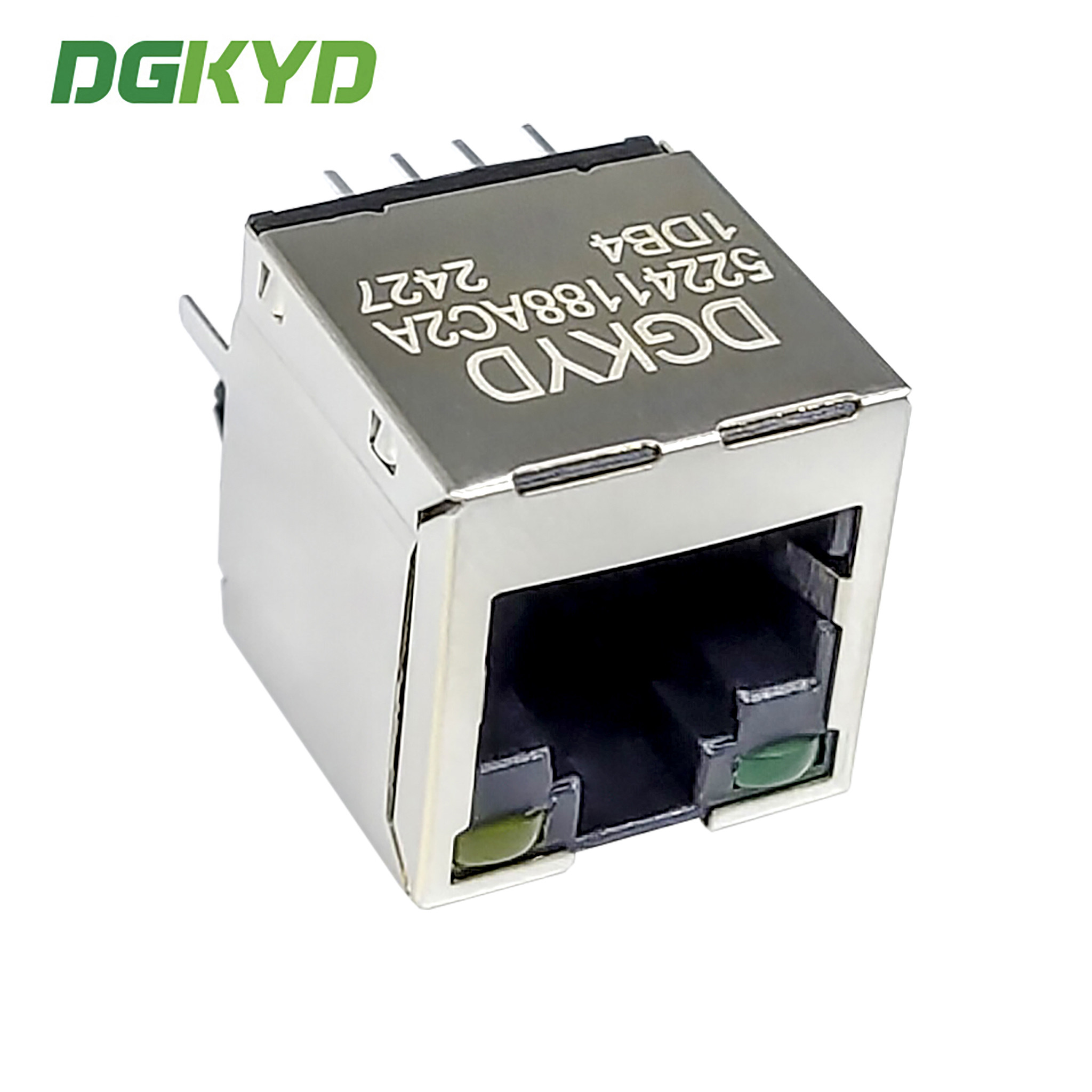

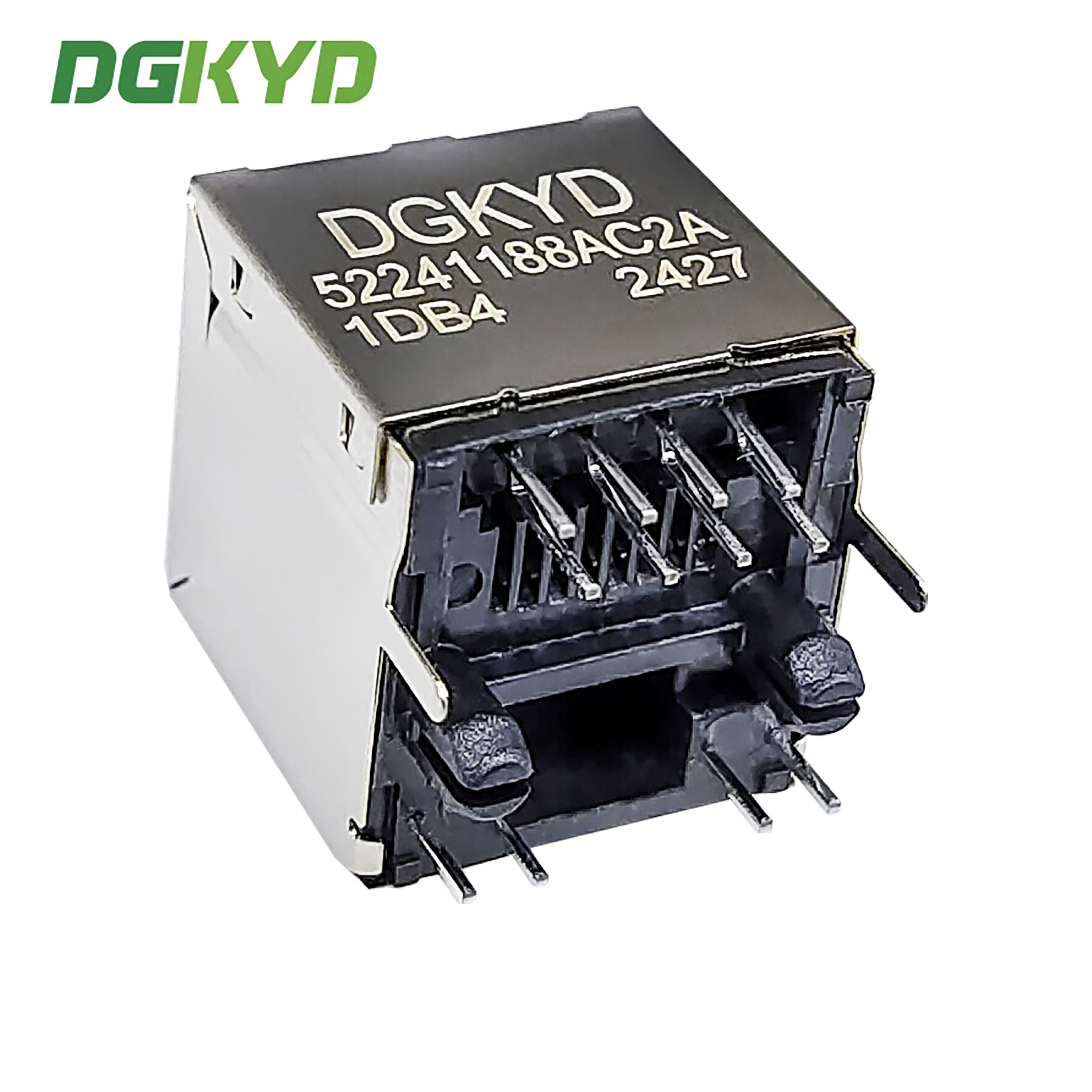

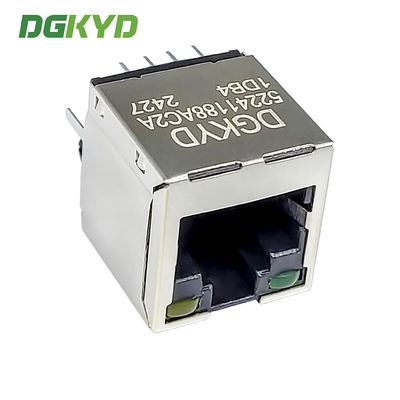

180 degree vertical socket RJ45 network port connector 8P8C interface DGKYD52241188AC2A1DB4

Product Specification Document
DGKYD52241188AC2A1DB4.pdf

Paramters

Part Number	DGKYD52241188AC2A1DB4	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	up
Filter	Without Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	.	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly,100% test, 0 defect, short lead time are our best advantages

Payment Terms:

There are many payment methods available such as Paypal,Escrow,Bank wire,Western Union and Moneygram ect

Return Policy:

If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay addtional shipping fees incurred and items returned should be kept in their original status.

Feedback:

Since your feedback is very important to our busines's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !
